This kit fits without any modification all the Samurai, Sj413 and Sj410 models and includes all the accessories necessary to make your Suzuki unstoppable and perfect even for competitions.
It lifts the car up to 11cm, lenghtens the wheelbase of 7cm and includes leaf-springs with innovative Jonny Joints and both extendable HD drive shafts.
The installation of a jonny joint on the leaf-spring allows a greater torsion than a classic silent block does, increasing mobility and ensuring the leaf-spring’s work only on compression and extension.
This system gives the suspensions major improvements in speed and quality.
It has been developed and tested during the Italian championship XTC with excellent results!
The wheelbase can be moved by 20mm on without buying other accessories, by simply installing the largest eye of the leafsprings in the front turrets, so as to install bigger tires, but in that case it would require the installation of an HD transmission shaft.
This kit allows to improve the stability and precision of driving on any ground type and avoids the risk of bending the front leaf-springs, as in case of collision the leaf-spring retracts enabling to overcome the obstacle.
It will also improve the angle of attack as the front leaf-spring's hitching point will move the axle on from 20mm up to 70mm, allowing the use of larger tires without the need to install the body lift.
If your off-road vehicle at the rear has 4 brake hoses, you MUST buy the 4 hose, here if it is a Japanese model, here if it is a Spanish model.
The Kit is composed of:
- 4 leaf springs S2 made in Italy, soft, galvanized and epoxy powder coated micalised matte black, with the innovative Jonny Joint system;
- 4 high-quality made in Italy rebuildable and readjustable shock absorbers (front ones +13 cm, rear ones +20 cm);
- 1 kit shackle reverse for rear leaf-springs on the front axle, with turrets and Y shackles, galvanized and epoxy painted matte black;
- 1 Polyurethane bushings kit;
- 4 bump-stops extensions;
- 2 Boomerang shackles, 8mm thick, with support aluminium bolted bushing, galvanized and coated with MICA epoxy matte black powder;
- 2 extendable (up to 10 cm) HD drive shafts;

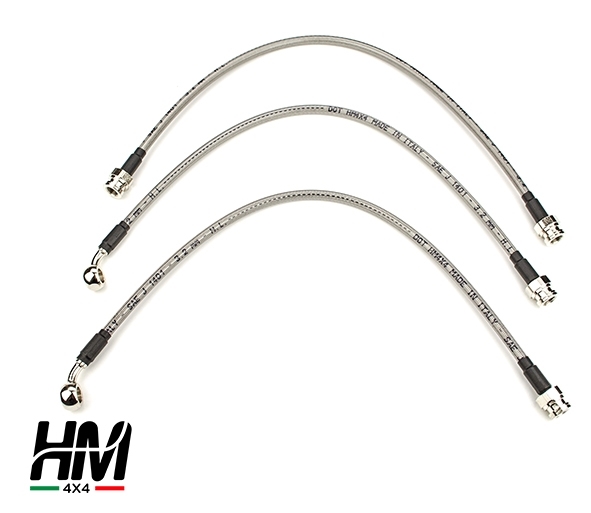

- 1 brake hose kit composed of 2 front ones and 1 rear one;
- 1 lenghtened pit arm for no power steering (not provided for diesel);
- 1 multihole bar that allows the adjustment of the rear shocks
- 1 front shocks repositioning kit;
- 1 caster kits.
It's possible to move the front axle on of 20mm, 40mm, 55mm or 70mm by using the accessories included in the kit.
IMPORTANT. if your off-road vehicle at the rear has 4 brake hoses, you MUST buy the 4 hose, here if it is a Japanese model, here if it is a Spanish model.
