This kit includes everything needed to install the Vitara 8V power steering box and power steering pump on Suzuki Samurai or Sj413.
In the drop-down menu, at the top right, you can configure the kit according to your needs.
The power steering pump support is supplied galvanized in the kit.
If you have any questions, do not hesitate to contact us.
The kit without pulley includes the following components:

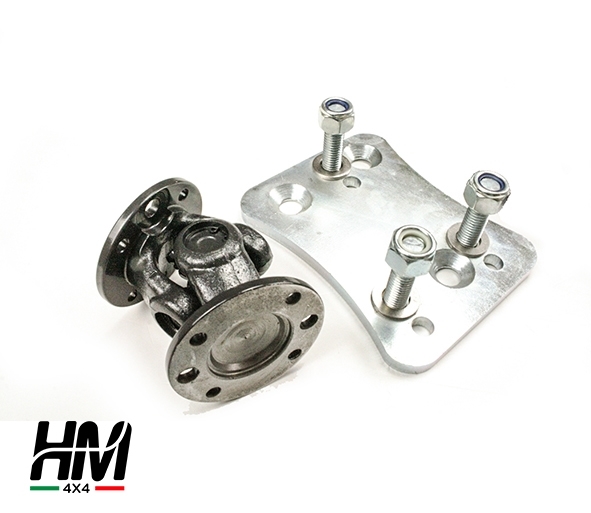

- plate to adapt the Vitara power steering box on the frame Samurai and Sj413, top right, in the drop-down menu, you can choose if you prefer the STANDARD assembly or in the same position of the original box or 20mm ADVANCED, solution to be preferred in case of a bridge or trim advance with shackle reverse;

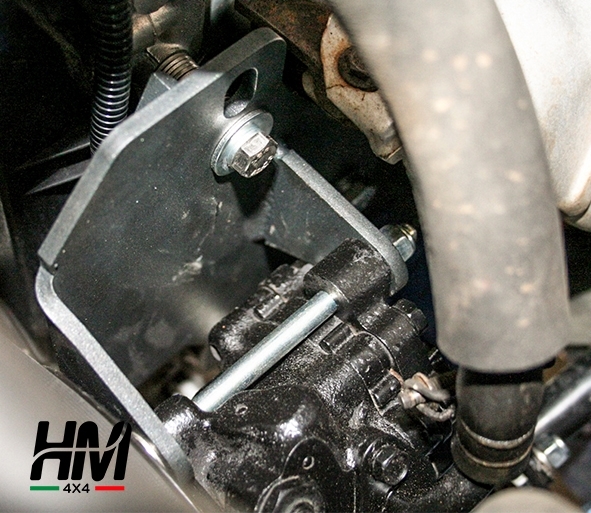

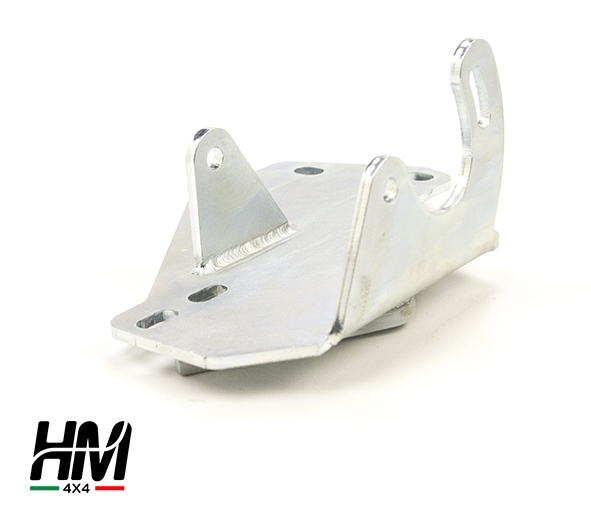

- plate to install the Vitara 8V pump on the 1.300 monoblock of the Samurai or Sj413 in a position that does not interfere with exhaust manifolds and steering column, even if you install a Vitara engine on the Samurai this plate must still be installed and you can not use the original Vitara motor bracket;

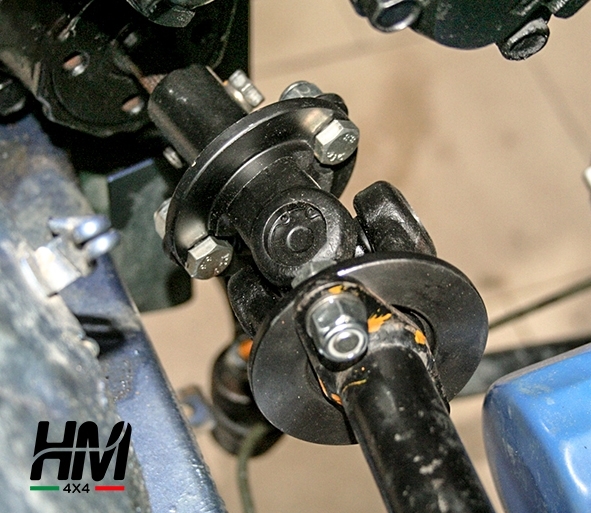

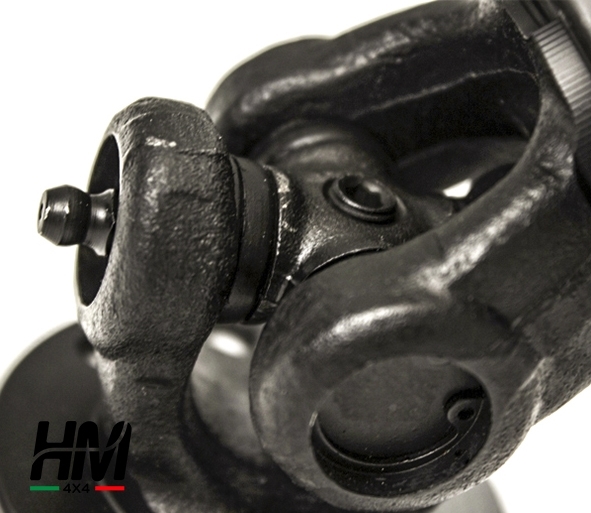

- HD cruise to be installed on the steering column without modifying anything, which makes it possible to compensate for the misalignment of the Vitara power steering box with respect to the Samurai steering column.

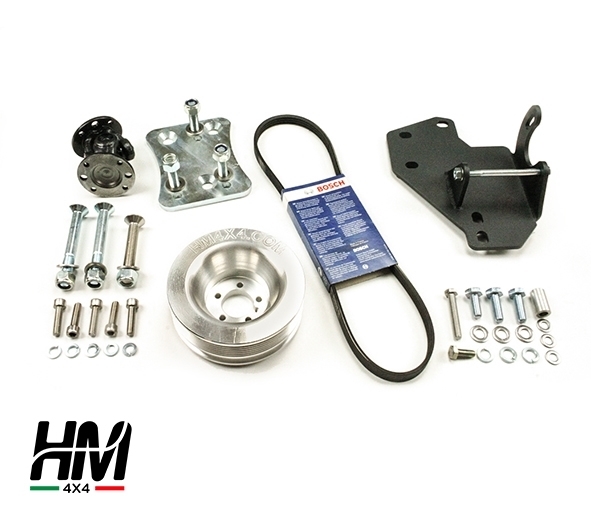

The pulley kit includes the following components:

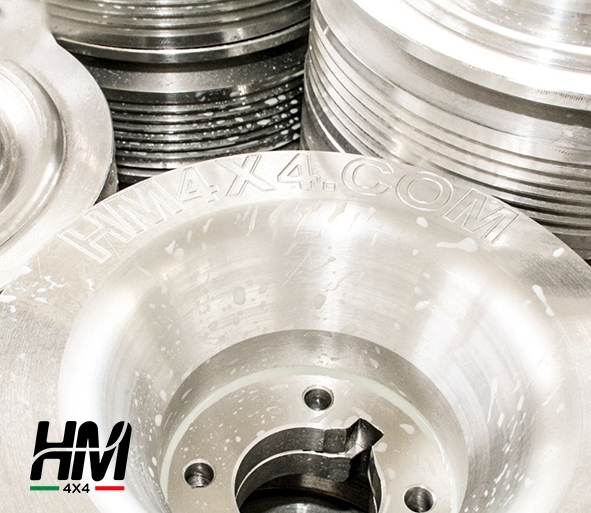

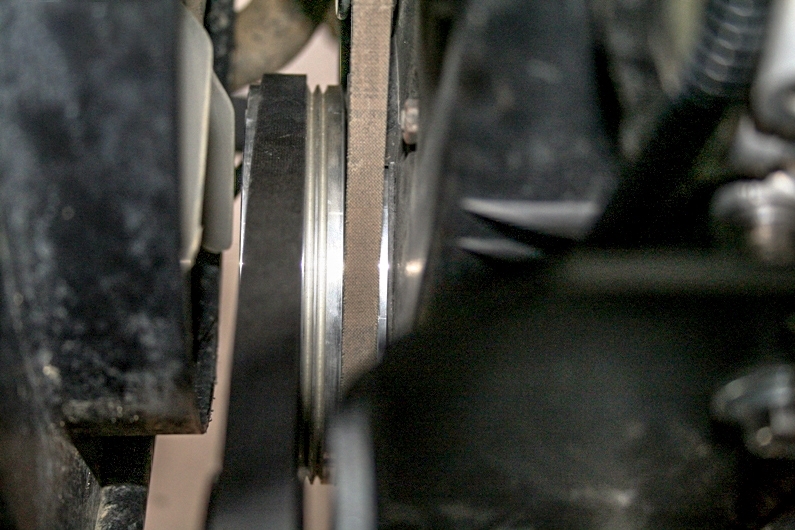

- Ergal double groove pulley to be installed on the 1300cc engine that allows you to connect the Vitara power steering pump belt, on the top right, in the drop-down menu, it is possible to choose if the pulley must have 4 or 5 holes;
- plate to adapt the Vitara power steering box on the frame Samurai and Sj413, top right, in the drop-down menu, you can choose if you prefer the STANDARD assembly or in the same position of the original box or 20mm ADVANCED, solution to be preferred in case of a bridge or trim advance with shackle reverse;
- plate to install the Vitara 8V pump on the 1.300 monoblock of the Samurai or Sj413 in a position that does not interfere with exhaust manifolds and steering column, even if you install a Vitara engine on the Samurai this plate must still be installed and you can not use the original Vitara engine bracket;

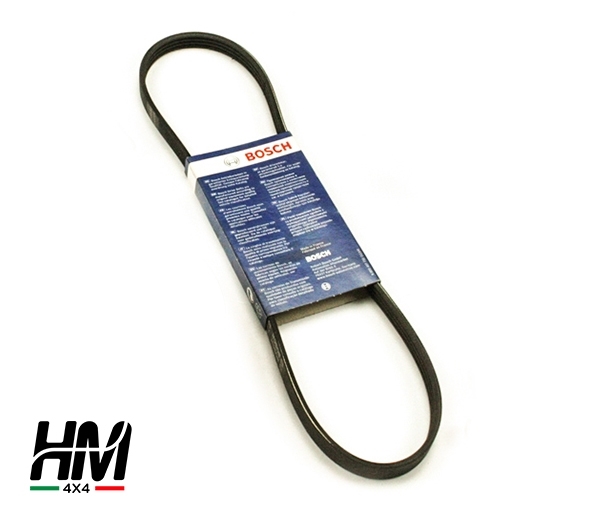

- high quality BOSH belt;
- HD cruise to be installed on the steering column without modifying anything, which makes it possible to compensate for the misalignment of the Vitara power steering box with respect to the Samurai steering column.
All the supports are entirely galvanized and equipped with all the stainless steel bolts useful for assembly.
NB. If you are making this modification and have installed or want to install a +7.5 cm lift kit, you will need to fit raised steering rods to maintain the original Suzuki Vitara pitarm. Conversely without the steering bars you would have to install the stretched pitarm for Suzuki Vitara difficult to find.
