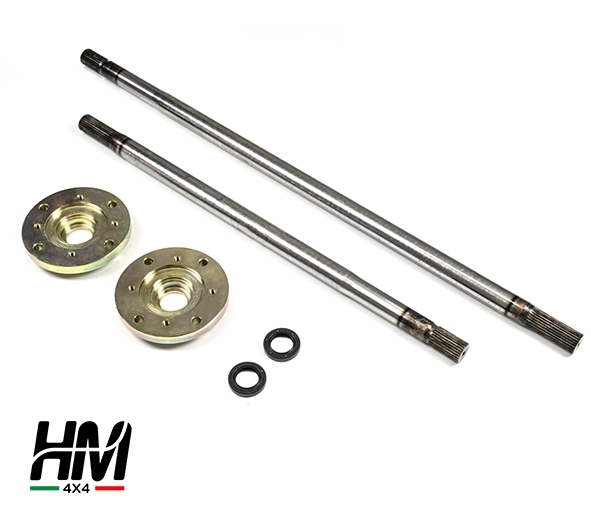

Rear full floating axle kit for Suzuki Jimny

€750.00
Add to cart
This system of drive shafts, which can be installed on all Suzuki Jimny, leaves only the task of transmitting the traction as the weight of the vehicle and therefore all the forces to which the wheels are subject are unloaded onto the hubs, with the same diameter and materials a single trailing axle is much more resistant than a semi-axle with a standard system.

The diameter of the axle is increased and worked so as to be housed in the presence of having to turn the hub, the point of connection with the splines is tapered and reinforced to avoid creating a breaking point, the particular alloy with which they are built makes it suitable even for very heavy use.

From the drop-down menu, specify whether the Jimny has ABS so that the phonic wheel is included in the kit.

Guaranteed for extreme use!

For technical info see the technical section.

Drive shafts made in Italy with TPR1 steel with induction heat treatment on the splines which makes the keying extremely resistant, leaving the torsional features of the shaft body unaltered.

It is possible to install it with any type of rear differential, both original and with locking differential ARB, self-locking or Spool.

The kit is equipped with flanges to install on the back deck the front hubs of the Suzuki Samurai, very resistant and easy to find.

Installing the front hubs of the Samurai you can install the disc brakes and widens the track of 25mm per side, even the possible replacement of a semi-axis becomes very simple as you just have to remove the hub even with the wheel mounted to remove the axle shaft.
