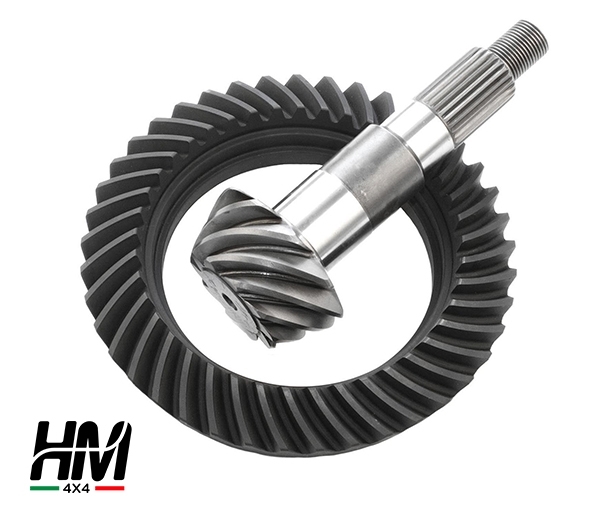

Reinforced front ring and pinion for Jeep Cherokee XJ front differential.
This ring and pinion, for front differential, produced by the well-known company Motive Gear, leader in transmission components, is made of SAE8620 steel with the Gleason process. Thermally hardened to resist wear, it is surface treated with black oxidation to make it extremely silent.
The high construction precision makes the recording particularly simple, however it is recommended to have the installation carried out by a specialized workshop. In the Download section you will find assembly instructions.
From the menu above, make your choices to buy the ring and pinion suitable for your off-road vehicle, bearing in mind that the Jeep Cherokee XJ manufactured between 1984 and 1999 are fitted with the ring and pinion kit with reverse rotation, while those made between 2000 and 2005 have a standard rotation. However, please check the type of rotation of the crown by comparing the one in your possession with the one shown in the photo.
The main installation features are the following:
differential case design type: Dana 30
ring gear bolt Quantity: 10
ring gear rotation: reverse/standard
Specifications for 4.56 ratio:
- pinion gear tooth 9
- pinion spline 26
- ring gear tooth 41
Specification for 4.10 ratio:
- pinion gear tooth 10
- pinion spline 26
- ring gear tooth 41
